MSRP78,000,000 VND

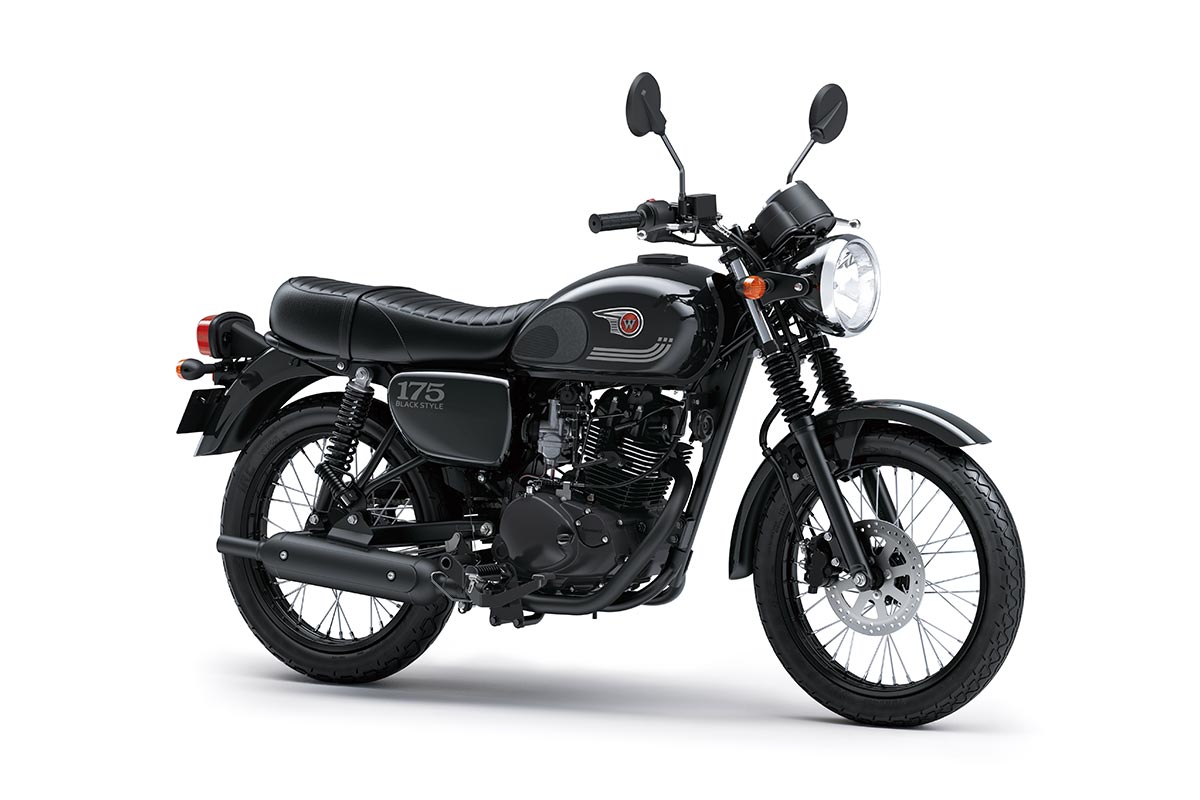

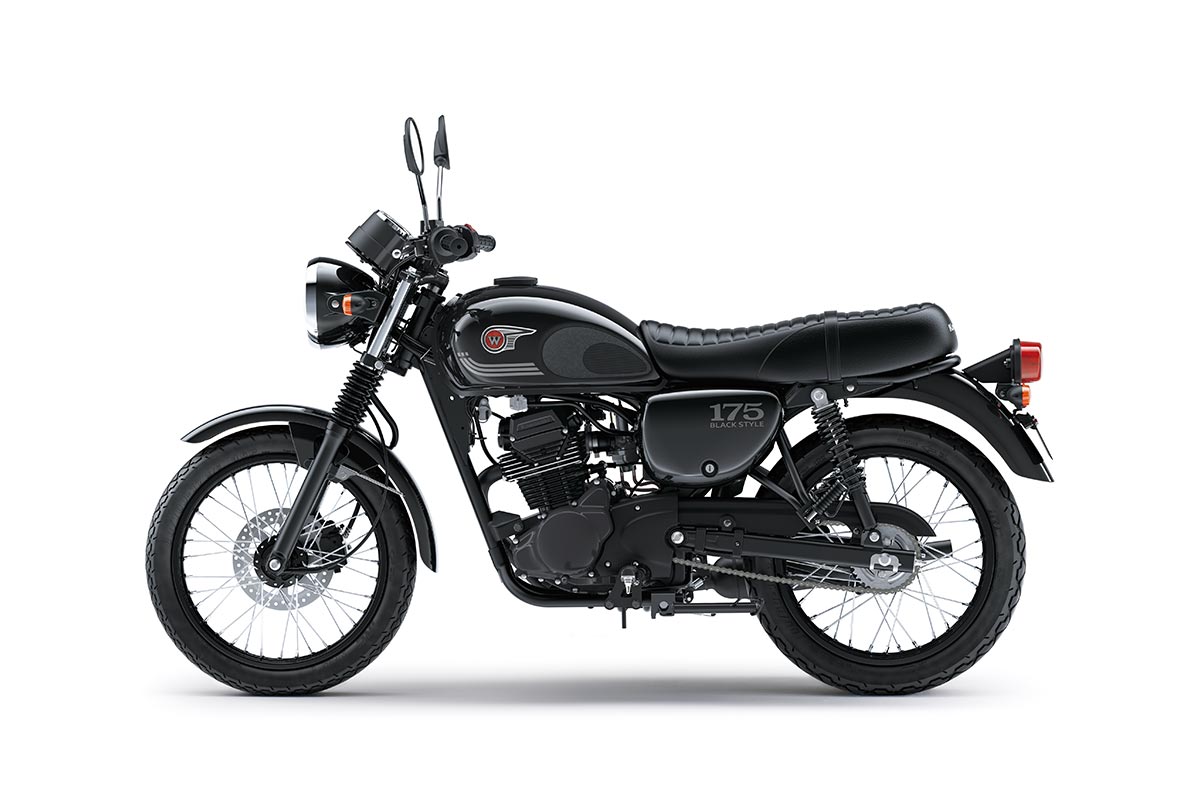

2025 W175 2025
Specifications and pricing are subject to change.
MODEL SPECS |
Classic
Motorbike
Tradition
at its Finest
| Maximum Power | 9.6 kW {13 PS} / 7,500 rpm |
| Maximum Torque | 13.2 Nm {1.3 kgfm} / 6,000 rpm |
| Engine type | Air-cooled, 4-stroke, SOHC 2 valve Single |
| Displacement | 177 cm³ |
| Bore and Stroke | 65.5 x 52.4 mm |
| Compression Ratio | 9.1:1 |
| Fuel System | Carburettor: Mikuni VM24 |
| Ignition system | DC-CDI |
| Starting system | Electric starter |
| Lubrication System | Forced Lub. Wet |
| Transmission | 5-speed, return |
| Primary reduction ratio | 3.667 (77/21) |
| Gear ratio: 1st | 2.700 (27/10) |
| Gear ratio: 2nd | 1.706 (29/17) |
| Gear ratio: 3rd | 1.300 (26/20) |
| Gear ratio: 4th | 1.091 (24 /22) |
| Gear ratio: 5th | 0.952 (20 /21) |
| Final reduction ratio | 2.333 (35 /15) |
| Clutch type (Primary) | Wet, multi-disc |
| Driving system | Chain |
| Frame type | Semi-double cradle, steel |
| Front Suspension | ø30 mm telescopic fork |
| Rear Suspension | Swingarm, dual shock absorbers with adjustable spring preload |
| Front Wheel Travel | 26.0° |
| Rear Wheel Travel | 65 mm |
| Rake | 26.0° |
| Trail | 76 mm |
| Steering angle (left/right) | 40° / 40° |
| Front Tire | 80/100-17M/C 46P |
| Rear Tire | 100/90-17M/C 55P |
| Front Brake Type | Single disc |
| F. Brake Effective Diam. | 194 mm |
| Rear Brake | Drum |
| R. Brake Effective Diam. | 110 mm |
| Dimensions (LxWxH) | 1,930 x 765 x 1,030 mm |
| Wheelbase | 1,275 mm |
| Road clearance | 165 mm |
| Seat height | 780 mm |
| Curb weight* | 126 kg |
| Fuel Consumption | 2.46 L/100km |
| Warranty | 24 months |
| Fuel supply | Carburetor |
*Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).
**Estimated dry weight does not include all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).
